Our U130 X8 Faro 300W LED headlight has moved from sample runs to regular production. It is the first unit in our range that pairs a 24,400LM output with a sealed IP67 housing and a plug-and-play harness for seven of the most requested sockets in the aftermarket.

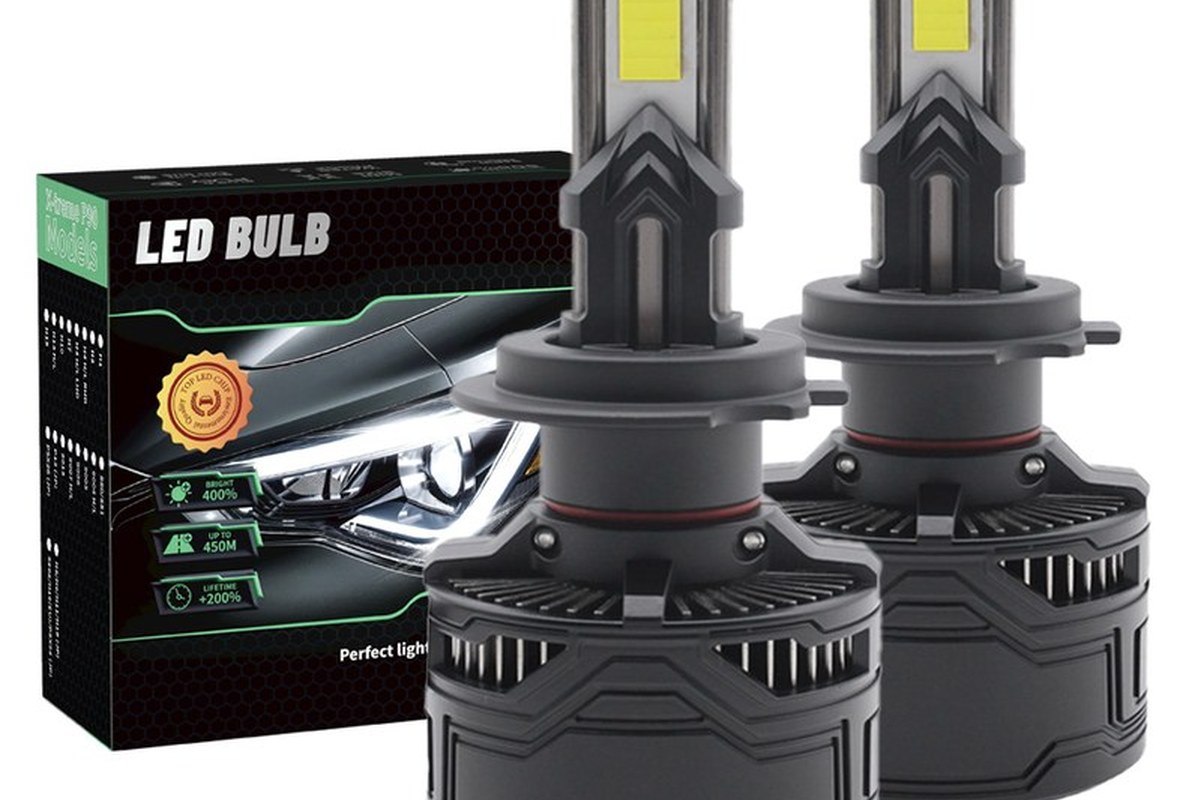

U130 X8 Faro, 300W per set, available in seven fitments
What the U130 X8 changes for installers
Most 300W-class bulbs on the market are sold on wattage alone. The X8 Faro is specified around three things an installer actually handles: heat, alignment and wiring.
- Thermal path: a machined aluminium body with a CSP 5080 array, rated for 50,000 hours of operation.
- Sealing: IP67 housing, so the lamp survives engine-bay wash-down and winter road salt.
- Wiring: the driver is integrated into the bulb base, so the factory harness stays untouched.
CSP 5080 array with integrated driver
Specification
| Specification | Value |
|---|---|
| Model | U130 X8 Faro |
| Power | 300W per set (150W per bulb) |
| Luminous flux | 24,400LM |
| Colour temperature | 6,500K white |
| Voltage | DC 12V |
| LED chips | CSP 5080 |
| Housing | Aluminium, IP67 |
| Lifespan | 50,000 hours |
| Available sockets | H1, H4, H7, H11, 9005, 9006, 9012 |
| OE reference | MR992871 |
| Warranty | 12 months |
Fitment and pricing
The same housing is produced in H4, H7, H11, 9005, 9006, 9012 and H1 bases. H4 carries a small premium because of the dual-filament lens assembly; the other sockets share one price.
| Specification | Value |
|---|---|
| MOQ | 4 sets |
| Unit price | US$18.90 per set (H4), US$15.00 per set (H7, H11, 9005, 9006, 9012, H1) |
| Lead time | 30 days for 1-1,000 sets |
| Packing | 20 x 20 x 6 cm, 0.6 kg per set |
| Custom logo | From 20 sets |
| Custom packaging | From 500 sets |
| Custom colour temperature | From 1,000 sets |
What buyers usually ask before the first order
Can I mix sockets in one carton? Yes. Mixed containers are packed per socket and labelled separately, so the carton count stays clean for customs.
Do you supply the harness separately? The X8 ships as a complete set with driver and connector; no extra harness is needed for the seven listed sockets.
Is a lower-power version available? The same housing is produced in 110W and 150W variants for markets where 300W is not street-legal.
IP67 housing with integrated driver board
Samples are available for evaluation, and the product page carries the full specification sheet. Buyers who need a socket not listed above should send the base type with a photo, and we will confirm whether the housing can be tooled for it.
